Singhui is a professional China Wooden Boring CNC 6 Sides Drilling Slotting Machinery for Cabinet manufacturers and suppliers, if you are looking for the best Wooden Boring CNC 6 Sides Drilling Slotting Machinery for Cabinet with low price, consult us now!

Product Description

Six-sided drilling machine is mainly used for horizontal,vertical drilling and slotting in various types of artificial panels, with small power spindle for slotting, solid wood panels, etc. Simple operation, fast drilling processing speed, with small spindle slotting, it is suitable for processing all kinds of modular cabinet-type furniture. Six-sided drilling machine can fix the workpiece in one clamping and multi-face machining. It simplifies the overall machining process of the workpiece, simplifies the process, improves the machining efficiency. It has also completely solved the problem that the complicated workpiece needs the error caused by multiple clamping, which reduces the work difference and improves the machining precision.

Feature:

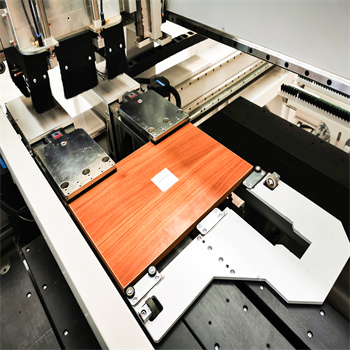

Six-sided drilling machine with bridge structure processes six sides in a single cycle.

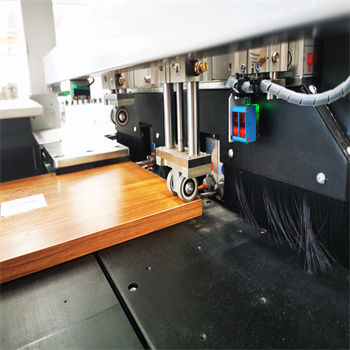

Double adjustable gripppers hold the workpiece firmly despite their length.
Air table reduces friction and protects the delicate surface.

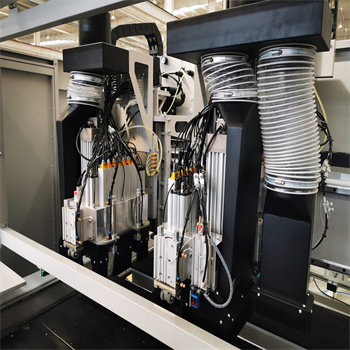

The head is configured with vertical drill bits, horizontal drill bits, saws and spindle so the machine could perform multiple jobs
Technical Parameter


Series    EHS1224

Travelling size    4800*1750*150mm

Max Panel Dimensions    2800*1200*50mm

Min Panel Dimensions    200*30*10mm

Workpiece Transmport     Air Floatation table

Workpiece Hold-down     Clamps

Spindle power   3.5kw*2  Travelling speed

80/130/30m/min    Drill bank configuration

21 vertical(12 top, 9 bottom)   8 horizontal

Driving system      INOVANCE

Controller  EXCITECH


Supply Ability
Supply Ability
200 Set/Sets per Month Excitech six sides CNC hole dilling machine for panel furniture
Packaging & delivery
Packaging Details
The cnc center is to be packed with plastic sheet for cleaning and damp proofing.
Fasten the cnc machine into the wood case for safety and against clashing.
Transport the wood case into the container.
